Power supply

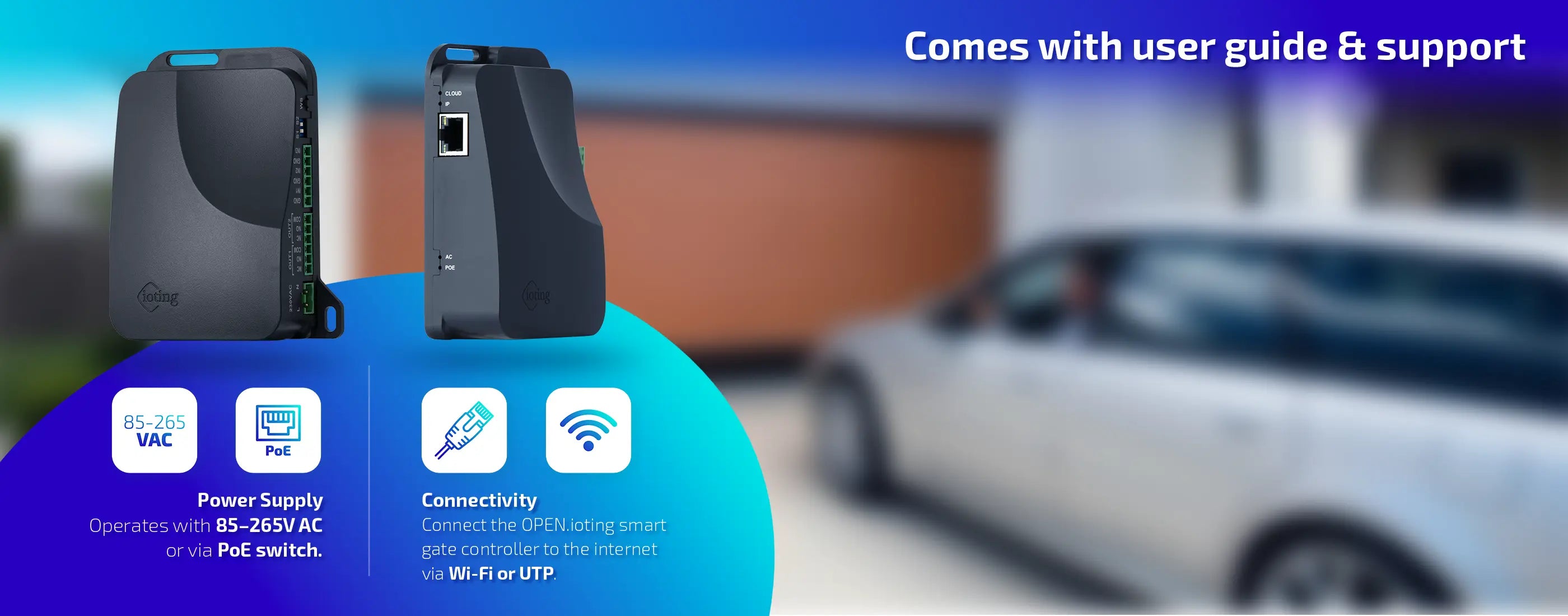

There are two ways to power the OPEN.ioting device.
Power supply from 85-265 VAC mains
This is done using the separate two-pole connector marked 230 VAC. Please connect the phase / L (LIVE) and neutral / N (NEUTRAL) inputs as indicated.
Important! With this connection method, the device must be installed in an IP67 mounting box!
When connecting a rigid wire or stranded wire, we recommend using a wire end ferrule, and the wire must be free of tension.
Attention! According to current legislation, high-voltage connections may only be carried out by a qualified and qualified person!
Power supply with PoE switch / PoE injector
We also provide the necessary power supply for the device to operate via an Ethernet connector. The device only supports 48V PoE power supply, so when purchasing, choose a 48V PoE switch device.
If the connection is successful and the 48 V power is supplied, the LED next to the PoE inscription on the side of the device will light green.
Would you like to know more about nutrition?
Read the frequently asked questions below. In our experience, you will find a solution to 95% of the problems, but if not, our Technical Support colleagues are always at your disposal.
